CoC LED Lamps | Candle series |
  LC35 CoC |
Non-Dimmable version |
|||||||||||||||||||
| Model No | Energy Class |
Lumen | Wattage | Filament | Incandescent Equivalent |
Color Temperature |
Lifetime | CRI | Voltage | Light Distribution |
Dimmable | Base | |||||||
| LC35 CoC | A++ | 100 lm | 1W | 1 pcs | 11W | 2700/ 4000/ 6500K |
20000 hrs | ≥80 | 220~240V | 360° | No | E14 / E27 B15d/ B22 |
|||||||
| 250 lm | 2W | 2 pcs | 25W | ||||||||||||||||
| 470 lm | 4W | 4 pcs | 40W | ||||||||||||||||
| LC35 CoC | A++ | 150 lm | 1.5W | 2 pcs | 16W | 2700/ 4000/ 6500K |
20000 hrs | ≥80 | 100~230V | 360° | No | E14 / E27 | |||||||
| 300 lm | 3W | 4 pcs | 28W | ||||||||||||||||
| LC35 CoC | A++ | 250 lm | 2W | 2 pcs | 25W | 2700/ 4000/ 6500K |
20000 hrs | ≥80 | 100~140V | 360° | No | E12 / E26 | |||||||
| 470 lm | 4W | 4 pcs | 40W | ||||||||||||||||
Dimmable version |
|||||||||||||||||||
| Model No | Energy Class |
Lumen | Wattage | Filament | Incandescent Equivalent |
Color Temperature |
Lifetime | CRI | Voltage | Light Distribution |
Dimmable | Base | |||||||
| LC35 CoC | A++ | 250 lm | 2.5W | 2 pcs | 25W | 2700/ 4000/ 6500K |
20000 hrs | ≥80 | 100~140V | 360° | Yes | E12 / E26 | |||||||
| 470 lm | 4.5W | 4 pcs | 40W | ||||||||||||||||
Dimension |
|||||||||||||||||||
| Model No. | E12 | E14 | E26 | E27 | B15d | B22 | |||||||||||||
| LC35 CoC | Ø35 X 108H mm | Ø35 X 99H mm | Ø35 X 90.5H mm | Ø35 X 92H mm | Ø35 X 96H mm | Ø35 X 90.5H mm | |||||||||||||
 |

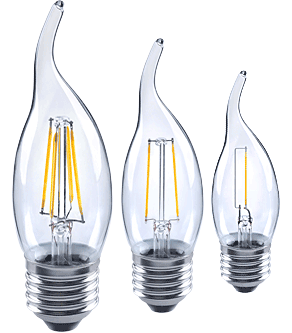

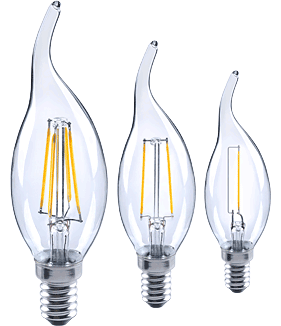

  LCL35 CoC |
Non-Dimmable |
|||||||||||||||||||
| Model No | Energy Class |
Lumen | Wattage | Filament | Incandescent Equivalent |
Color Temperature |
Lifetime | CRI | Voltage | Light Distribution |
Dimmable | Base | |||||||
| LC35 CoC | A++ | 100 lm | 1W | 1 pcs | 11W | 2700/ 4000/ 6500K |
20000 hrs | ≥80 | 220~240V | 360° | No | E14 / E27 B15d/ B22 |
|||||||
| 250 lm | 2W | 2 pcs | 25W | ||||||||||||||||
| 470 lm | 4W | 4 pcs | 40W | ||||||||||||||||
| LC35 CoC | A++ | 150 lm | 1.5W | 2 pcs | 16W | 2700/ 4000/ 6500K |
20000 hrs | ≥80 | 100~230V | 360° | No | E14 / E27 | |||||||
| 300 lm | 3W | 4 pcs | 28W | ||||||||||||||||
| LC35 CoC | A++ | 250 lm | 2W | 2 pcs | 25W | 2700/ 4000/ 6500K |
20000 hrs | ≥80 | 100~140V | 360° | No | E12 / E26 | |||||||
| 470 lm | 4W | 4 pcs | 40W | ||||||||||||||||
Dimmable |
|||||||||||||||||||
| Model No | Energy Class |
Lumen | Wattage | Filament | Incandescent Equivalent |
Color Temperature |
Lifetime | CRI | Voltage | Light Distribution |
Dimmable | Base | |||||||
| LC35 CoC | A++ | 250 lm | 2.5W | 2 pcs | 25W | 2700/ 4000/ 6500K |
20000 hrs | ≥80 | 100~140V | 360° | Yes | E12 / E26 | |||||||
| 470 lm | 4.5W | 4 pcs | 40W | ||||||||||||||||
Dimension |
|||||||||||||||||||
| Model No. | E12 | E14 | E26 | E27 | B15d | B22 | |||||||||||||
| LCL35 CoC | Ø35 X 135H mm | Ø35 X 122H mm | Ø35 X 117.5H mm | Ø35 X 119H mm | Ø35 X 120.5H mm | Ø35 X 117.5H mm | |||||||||||||
|
 LCT35 CoC |
| Model No. (Voltage) |
Energy Class |
Lumen | Wattage | Filament | Incandescent Equivalent |
Color Temperature |
Lifetime | CRI | Voltage | Light Distribution |
Dimmable | Base |
| LCT35 CoC | A++ | 100 lm | 1W | 1 pcs | 11W | 2700/ 4000/ 6500K |
20000 hrs | ≥80 | 220~240V | 360° | No | E14 |
| 250 lm | 2W | 2 pcs | 25W | |||||||||
| 470 lm | 4W | 4 pcs | 40W |
Dimension |
|||||||||||||||||||
| Model No. | E12 | E14 | E26 | E27 | B15d | B22 | |||||||||||||
| LCT35 CoC | Ø35 X 99H mm | ||||||||||||||||||
Tolerance of product dimension : Lenght ± 2mm/Diameter ± 0.5mm |
 |
