ENERGY SAVING LAMPS | Half Spiral |
 |
 EUH5WT2 |
 EUH8W / EUH8WT2 |
 EUH9WT2 |
 EUH11WT2 |
 EUH14WT2 |
 EUH15WT2 |
 EUH20WT2 / EUH23WT2 / EUH24WT2 |
| Model No. | Energy Class |
Tube | Lumen | Wattage | Incandescent Equivalent |
Color Temperature |
Lifetime | CRI | Voltage | Dimmable | Base |
| EUH8WT2 | A | T2 | 470 lm | 8W | 42W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E14 / E27 |
| EUH9WT2 | A | T2 | 550 lm | 9W | 47W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E14 / E27 |
| EUH10WT2 | A | T2 | 620 lm | 10W | 52W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E14 / E27 |
| EUH11WT2 | A | T2 | 660 lm | 11W | 54W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E27 |
| EUH12WT2 | A | T2 | 720 lm | 12W | 58W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E27 |
| EUH15WT2 | A | T2 | 800 lm | 15W | 65W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E27 |
| EUH18WT2 | A | T2 | 1200 lm | 18W | 88W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E27 |
| EUH20WT2 | A | T2 | 1250 lm | 20W | 91W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E27 |
| EUH23WT2 | A | T2 | 1480 lm | 23W | 104W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E27 |
| EUH24WT2 | A | T2 | 1480 lm | 24W | 104W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E27 |
Dimension |
|||||||||||||||||||
| Base | EUH8WT2 | EUH9WT2 | EUH10WT2 | EUH11WT2 | EUH12WT2 | ||||||||||||||
| E14 | Ø45 x 92H mm | Ø45 x 98H mm | Ø45 x 98H mm | ||||||||||||||||
| E27 | Ø45 x 87H mm | Ø45 x 93H mm | Ø45 x 93H mm | Ø46 x 93H mm | Ø45 x 95H mm | ||||||||||||||
| Base | EUH15WT2 | EUH18WT2 | EUH20WT2 | EUH23WT2 | EUH24WT2 | ||||||||||||||
| E27 | Ø45 x 115H mm | Ø56 x 107H mm | Ø56 x 112H mm | Ø56 x 112H mm | Ø56 x 112H mm | ||||||||||||||
 |
 |
 EUH9WT3 |
 EUH11WT3 |
 EUH15WT3 |
 EUH13WT3 |
 EUH18WT3 |
 EUH23WT3 |
 |
 EUH23WT4 |
| Model No. | Energy Class |
Tube | Lumen | Wattage | Incandescent Equivalent |
Color Temperature |
Lifetime | CRI | Voltage | Dimmable | Base |
| EUH9WT3 | A | T3 | 560 lm | 9W | 48W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E14 / E27 |
| EUH11WT3 | A | T3 | 670 lm | 11W | 55W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E14 / E27 |
| EUH13WT3 | A | T3 | 835 lm | 13W | 66W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E27 |
| EUH15WT3 | A | T3 | 940 lm | 15W | 73W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E27 |
| EUH18WT3 | A | T3 | 1150 lm | 18W | 85W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E27 |
| EUH23WT3 | A | T3 | 1520 lm | 23W | 107W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E27 |

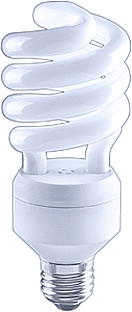

| EUH23WT4 | A | T4 | 1600 lm | 23W | 111W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E27 |
Dimension |
|||||||||||||||||||
| Base | EUH9WT3 | EUH11WT3 | EUH13WT3 | EUH15WT3 | EUH18WT3 | EUH23WT3 | EUH23WT4 | ||||||||||||
| E14 | Ø43 x 110H mm | Ø46 x 112H mm | |||||||||||||||||
| E27 | Ø43 x 109H mm | Ø46 x 114H mm | Ø43 x 128H mm | Ø50 x 119H mm | Ø54 x 126H mm | Ø54 x 135H mm | Ø60 x 150H mm | ||||||||||||
Tolerance of product dimension : Lenght ± 2mm/Diameter ± 0.5mm / Test data based on 220-240V |
 |
