ENERGY SAVING LAMPS | 4U Standard |
 |
 EUT15W4UT2 |
 |
 EUT15W4UT3 |
 EUT20W4UT3 |
 EUT23W4UT3 |
 |
 EUT30W4UT4 |
| Model No. | Energy Class |
Tube | Lumen | Wattage | Incandescent Equivalent |
Color Temperature |
Lifetime | CRI | Voltage | Dimmable | Base |
| EUT15W4UT2 | A | T2 | 800 lm | 15W | 63W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E27 |
| EUT15W4UT3 | A | T3 | 850 lm | 15W | 67W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E27 |
| EUT20W4UT3 | A | T3 | 1200 lm | 20W | 88W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E27 |
| EUT23W4UT3 | A | T3 | 1370 lm | 23W | 98W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E27 |

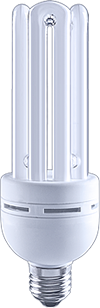

| EUT30W4UT4 | A | T4 | 1900 lm | 30W | 129W | 2700/ 4200/ 6500K | 10000 hr | ≥80 | 220~240V | No | E27 |
Dimension |
|||||||||||||||||||
| Base | EUT15W4UT2 | EUT15W4UT3 | EUT20W4UT3 | EUT23W4UT3 | EUT30W4UT4 | ||||||||||||||
| E27 | Ø43 x 120H mm | Ø48 x 126H mm | Ø48 x 141H mm | Ø48 x 151H mm | Ø53 x 181H mm | ||||||||||||||
Tolerance of product dimension : Lenght ± 2mm/Diameter ± 0.5mm / Test data based on 220-240V |
 |
